In construction, profit margins are measured in fractions of a percent, meaning a single grading error can wipe out weeks of earnings. Yet, many contractors make machine control modeling mistakes that increase their project costs unnecessarily. That’s why the difference between a profitable project and a financial drain is often your 3D data quality.
JUMP TO SECTION
3 Critical Errors in GPS Modeling
Each machine control modeling mistake creates immediate consequences in the field, from equipment sitting idle to entire projects built in the wrong location.
1. Trusting Unverified Design Files
What works for design in an office doesn’t always translate to construction reality, which is why taking an engineer’s design file and sending it straight to the field without verifying it creates serious risk.
Common problems found in unverified files include:
- Discrepancies between plan sets: Grading plans may conflict with utility layouts, creating impossible conditions in the field.
- File incompatibility issues: Conversion between software platforms introduces errors that compound during construction.
- Design omissions: Missing break lines, incorrect elevations or incomplete surface definitions lead to inaccurate models.
- Outdated survey information: Base data that no longer matches current site conditions can create additional challenges.

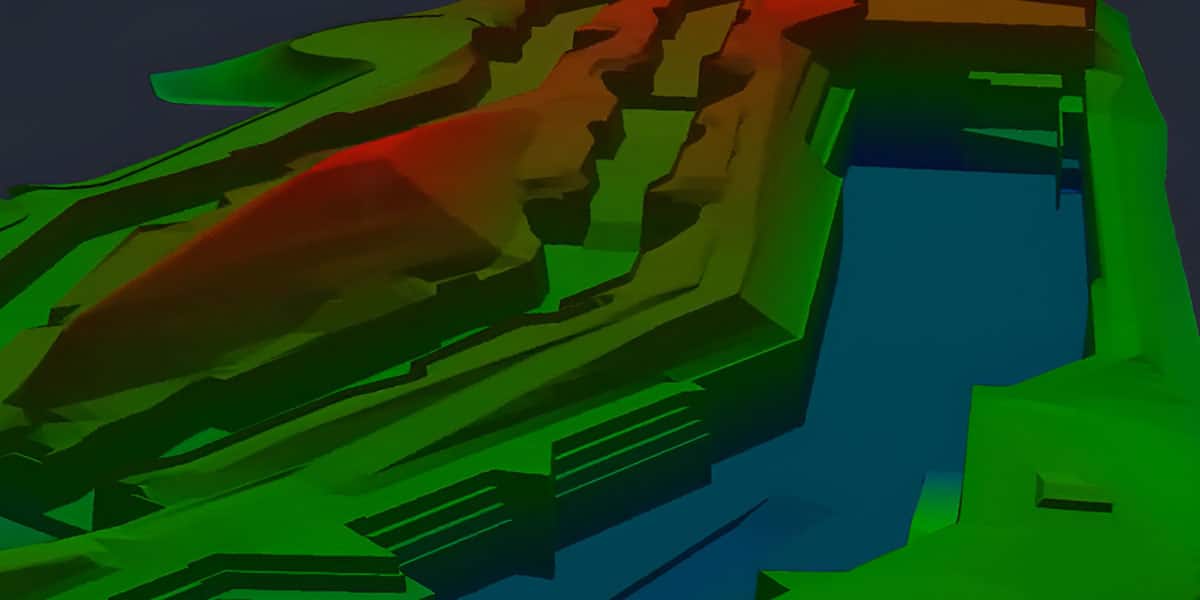

A high-quality 3D machine control model requires verification across all plan sets before it reaches the field.
2. Inadequate Site Control and Calibration
Site control establishes an accurate, localized positioning system on your construction site. This calibration step is the most important foundation for any GPS-guided project.
Improper site control causes the entire project to be built in the wrong place. Using too few control points or failing to surround the work area creates a calibration that drifts across the site. The result is millimeter-perfect grading in the wrong location, requiring complete rework.
3. Neglecting Operator and Field Crew Training
The most advanced machine control system is only as good as the person running it. This is why effective training that goes beyond software operation is vital.
Operators need to interpret the model, identify potential issues before they become problems, and communicate effectively with the office when the model doesn’t match field conditions. Without this training, crews end up troubleshooting basic issues that proper preparation would have prevented.
The Real Cost of Modeling Errors
These GPS modeling errors create financial and operational consequences, including:
- Rework and schedule delays: A single construction modeling problem creates a domino effect. Correcting one error requires moving equipment, remobilizing crews, and redoing completed work. What starts as a minor modeling mistake can become days or weeks of delay that disrupts the entire project schedule and triggers penalty clauses.
- Material wastage and budget overruns: Common machine control errors lead to over-excavation, excess material placement or incorrect grading that requires removal and replacement. The cost extends beyond wasted materials to include the fuel, labor, and disposal fees required to remove the unneeded material.
- Safety risks and legal disputes: Hitting an unexpected utility line because of an inaccurate model creates serious safety hazards and project shutdowns.
How to Avoid Modeling Mistakes
Preventing these costly errors requires systematic processes and expert support. Contractors who implement these practices consistently deliver projects on time and on budget:
- Establish a rigorous quality assurance process: Quality assurance for data preparation includes cross-referencing all plan sets, visually inspecting the 3D model for errors and verifying elevations against survey data. This process catches discrepancies before they reach the field.
- Foster clear communication between office and field: Create a clear line of communication, so the team building the model understands field realities, and field crews know who to contact when the model doesn’t match conditions. This communication prevents small issues from becoming expensive problems.
- Partner with a data preparation expert: Just as you hire specialists for surveying, structural engineering or other critical tasks, partnering with a dedicated data prep team ensures accuracy. Through their data preparation and modeling services, professional modeling teams can catch the errors that cause rework and protect your profitability.
